Water Supply System
REHAU HYBRID SYSTEM
The Ultimate Combination

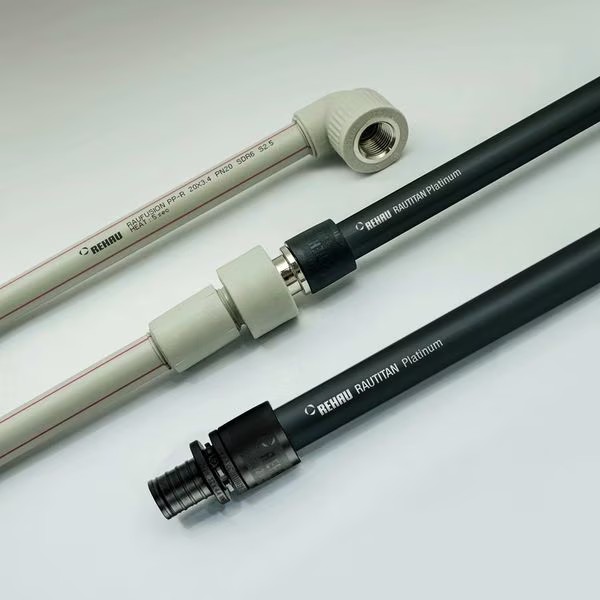

The REHAU Hybrid system combines the key strengths of the PEX and PP-R systems into a comprehensive plumbing system (16-110mm) delivering greater security, higher speed and better flow, at a price that delivers value to contractors and owners alike.
RAUTITAN PE-X 16 - 40 mm
Concealed in walls and cavities, the flexible RAUTITAN PEX systems provides the ultimate speed, flexibility and security for connection of fixtures.
RAUFUSION PP-R 50 - 110 mm
Used for the riser main and branch distribution pipes, the RAUFUSION PP-R provides straight rigid pipes and the most cost-effective jointing techniques for larger dimensions.
The REHAU Hybrid system combines the key strengths of the PEX and PP-R systems into a comprehensive plumbing system (16-110mm) delivering greater security, higher speed and better flow, at a price that delivers value to contractors and owners alike.
RAUTITAN PE-X 16 - 40 mm
Concealed in walls and cavities, the flexible RAUTITAN PEX systems provides the ultimate speed, flexibility and security for connection of fixtures.
RAUFUSION PP-R 50 - 110 mm
Used for the riser main and branch distribution pipes, the RAUFUSION PP-R provides straight rigid pipes and the most cost-effective jointing techniques for larger dimensions.
Greater Security
80% of all joints are made with the sizes 16-40mm on most projects , installed in tight or concealed locations where maximum damage can occur in the event of leaks. RAUTITAN PEX compression sleeve joint is therefore the best fit as it does not require any special skill for jointing and has proven to be 100% leak-proof for over 30 years of installations across the world.
Superior Speed
RAUTITIAN PE-X is 60% faster to install than fusion system or traditional systems such as copper. The flexible coiled PE-X pipes and simple mechanical joint allow installers to transport, install and move quickly through any job, with the confidence the system is 100% secure.
Ultimate Value

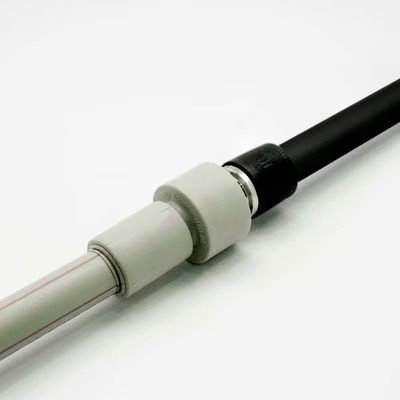

To ensure a seamless connection that gives no tolerance to any potential leakage, REHAU has developed the unique PEX/PP-R adaptors to avoid using threaded connection between the two systems.

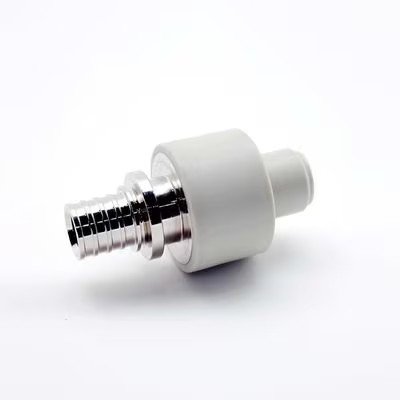

These adaptors are made from PP-R with the insertion of a nickel coated DZR brass fitting. One side can be fused onto the RAUFUSION fitting and the other end joined to RAUTITAN pipe using a compression sleeve connection.
